Product Summary

The AD7723BS is a complete 16-bit, sigma-delta ADC. The part operates from a +5V supply. The analog input is continuously sampled, eliminating the need for an external sample-and-hold. The modulator output is processed by a finite impulse response (FIR) digital filter. The on-chip filtering combined with a high oversampling ratio reduces the external antialias requirements to first order in most cases. The digital filter frequency response can be programmed to be either low pass or band pass.The AD7723BS provides 16-bit performance for input bandwidths up to 460 kHz at an output word rate up to 1.2 MHz. The sample rate, filter corner frequencies and output word rate are set by the crystal oscillator or external clock frequency.

Parametrics

AD7723BS absolute maximum ratings: (1)DVDD to DGND: –0.3 V to +7 V; (2)AVDD, AVDD1 to DVDD: –1 V to +1 V; (3)Digital Inputs to DGND: –0.3 V to DVDD + 0.3 V; (4)Operating Temperature Range: – 40°Cto +85°C; (5)Storage Temperature Range: –65°C to +150°C; (6)Junction Temperature: +150°C.

Features

AD7723BS features: (1)16-Bit Sigma-Delta ADC: 1.2 MSPS Output Word Rate/32/16 3 Oversampling Ratio/Low-Pass and Band-Pass Digital Filter; (2)On-Chip 2.5 V Voltage Reference; (3)Standby Mode; (4)Flexible Parallel or Serial Interface; (5)Crystal Oscillator; (6)Single +5 V Supply.

Diagrams

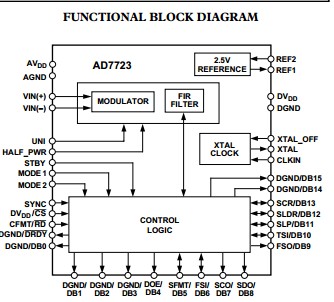

AD7723BS functional block diagram
