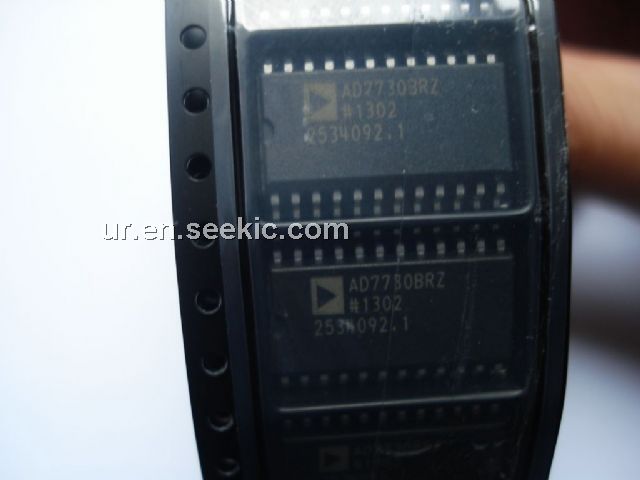

Product Summary

The AD7730BRZ is a complete analog front end for weigh-scale and pressure measurement applications. The device accepts lowlevel signals directly from a transducer and outputs a serial digital word. The input signal is applied to a proprietary programmable gain front end based around an analog modulator. The AD7730BRZ is available in a 24-pin plastic DIP, a 24-lead SOIC and 24-lead TSSOP package.

Parametrics

AD7730BRZ absolute maximum ratings: (1)Reference Input Voltage to AGND: –0.3 V to AVDD + 0.3 V; (2)Digital Input Voltage to DGND: –0.3 V to DVDD + 0.3 V; (3)Digital Output Voltage to DGND: –0.3 V to DVDD + 0.3 V; (4)Storage Temperature Range: –65°C to +150°C; (5)Junction Temperature: +150°C; (6)Plastic DIP Package, Power Dissipation:450 mW.

Features

AD7730BRZ features: (1)Resolution of 230,000 Counts (Peak-to-Peak); (2)Offset Drift: 5 nV/°C; (3)Gain Drift: 2 ppm/°C; (4)Line Frequency Rejection: >150 dB; (5)Buffered Differential Inputs; (6)Programmable Filter Cutoffs; (7)Specified for Drift Over Time; (8)Operates with Reference Voltages of 1 V to 5 V.

Diagrams

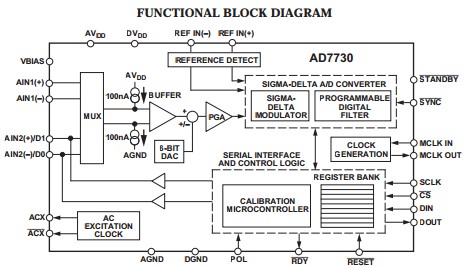

AD7730BRZ functional block diagram
