Product Summary

The AD9248BSTZ-20 is a dual A/D converter. Its applications include Ultrasound equipment, Direct conversion or IF sampling receivers, WB-CDMA, CDMA2000, WiMAX, Battery-powered instruments, Hand-held scopemeters, Low cost digital oscilloscopes. The AD9248BSTZ-20 uses a multistage differential pipelined architecture with output error correction logic to provide 14-bit accuracy and to guarantee no missing codes over the full operating temperature range at up to 65 MSPS data rates.

Parametrics

AD9248BSTZ-20 absolute maximum ratings: (1)AVDD to AGND: -0.3 to 3.9V; (2)DRVDD to DRGND: -0.3 to 3.9V; (3)AVDD to DRVDD: -0.3 DRVDD+0.3V; (4)VREF to AGND: -0.3 to AVDD+0.3V; (5)operating temperature: -40 to 85℃; (6)storage temperature: -65 to 150℃; (7)lead temperature: 300℃.

Features

AD9248BSTZ-20 features: (1)Integrated dual 14-bit ADC; (2)Single 3 V supply operation (2.7 V to 3.6 V); (3)SNR = 71.6 dB (to Nyquist, AD9248-65); (4)SFDR = 80.5 dBc (to Nyquist, AD9248-65); (5)Low power: 300 mW/channel at 65 MSPS; (6)Differential input with 500 MHz, 3 dB bandwidth; (7)Exceptional crosstalk immunity > 85 dB; (8)Flexible analog input: 1 V p-p to 2 V p-p range; (9)Offset binary or twos complement data format; (10)Clock duty cycle stabilizer.

Diagrams

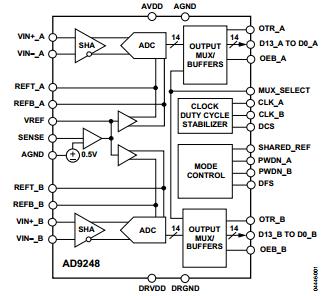

AD9248BSTZ-20 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9248BSTZ-20
AD9248BSTZ-20

IC ADC 14BIT DUAL 20MSPS 64-LQFP
Data Sheet
0-1: $20.98
1-10: $19.40
10-100: $16.57
100-250: $15.21
250-500: $14.47
500-1000: $13.98
