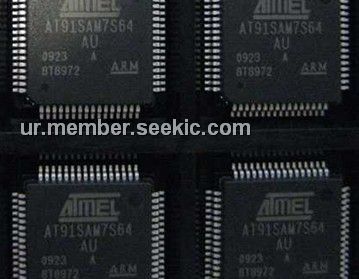

AT91SAM7S64-AU

MCU, ARM 512K HI SPD FLASH, QFP, 32-bit RISC Architecture, 16-bit Instruction Set, Internal High-speed Flash

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~31.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~31.50

PartNumber:: AT91SAM7S64-AU

Brand:: ATMEL Corporation - ATMEL | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. qi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:AT91SAM7S64-AU
US $1.50 - 31.50
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
PIC16F917-I/P(PIC16F917-IP)

US $1.60 - 2.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT91SAM7S64-AU is a series of low pincount Flash microcontrollers based on the 32-bit ARM RISC processor. It features a high-speed Flash and an SRAM, a large set of peripherals, including a USB 2.0 device and a complete set of system functions minimizing the number of external components. The device is an ideal migration path for 8-bit microcontroller users looking for additional performance and extended memory. The AT91SAM7S64-AU Series system controller includes a reset controller capable of managing the power-on sequence of the microcontroller and the complete system. Correct device operation can be monitored by a built-in brownout detector and a watchdog running off an integrated RC oscillator.

Parametrics

AT91SAM7S64-AU absolute maximum ratings: (1)Maximum Clock Frequency: 55 MHz ; (2)Operating Supply Voltage: 1.8 V to 3.3 V ; (3)Maximum working temperature: + 85℃ ; (4)Minimum working temperature: -40℃.

Features

AT91SAM7S64-AU features: (1)High-performance 32-bit RISC Architecture; (2)- High-density 16-bit Instruction Set; (3)- Leader in MIPS/Watt; (4)- EmbeddedICE. In-circuit Emulation, Debug Communication Channel Support; (5)Internal High-speed Flash; (6)Internal High-speed SRAM, Single-cycle Access at Maximum Speed; (7)Embedded Flash Controller, Abort Status and Misalignment Detection; (8)Windowed Watchdog; (9)One USB 2.0 Full Speed (12 Mbits per Second) Device Port; (10)Fully Static Operation: Up to 55 MHz at 1.65V and 85. C Worst Case Conditions.
