Product Summary
The CM800DZ-34H is an IGBT. It is applicated for Inverters, Converters, DC choppers, Induction heating and DC to DC converters.
Parametrics
CM800DZ-34H absolute maximum ratings: (1)collector-emitter voltage: 1700 V; (2)Gate-emitter voltage: ±20 V; (3)Maximum collector dissipation: 5000 W; (4)Junction temperature: -40℃ to +150℃; (5)Storage temperature: -40℃ to +125℃; (6)Isolation voltage: 4000 V.
Features
CM800DZ-34H features: (1)IC: 800A; (2)VCES: 1700V; (3)Insulated Type; (4)2-elements in a pack.

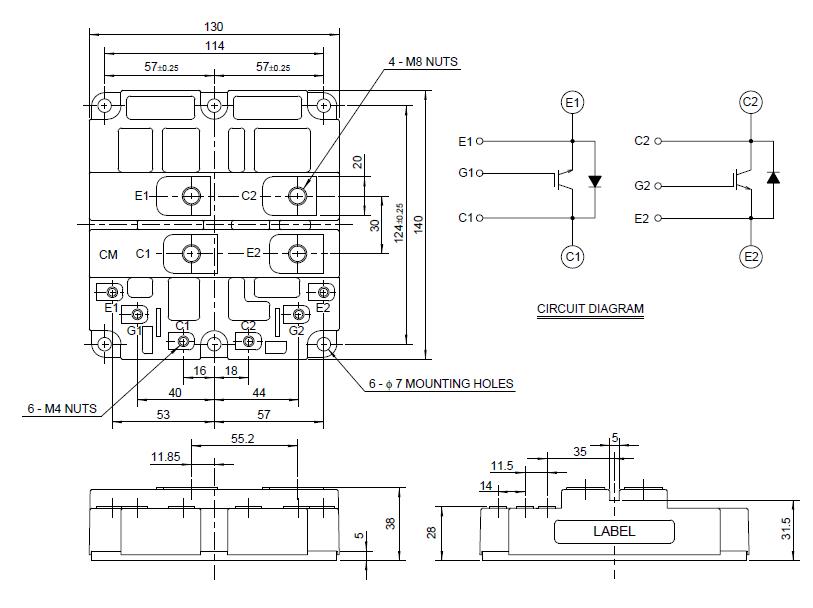

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM800DZ-34H |
Other |
|
Data Sheet |
Negotiable |
|
||||||
