Product Summary

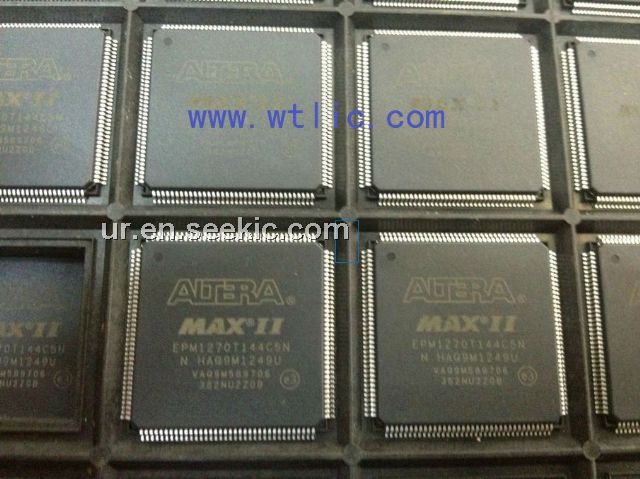

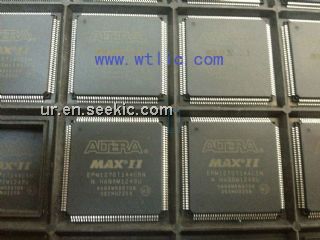

The EPM1270T144C5 belongs to MAX II devices which contain a two-dimensional row- and column-based architecture to implement custom logic. Column and row interconnect provide signal interconnects between the logic array blocks (LABs). The logic array consists of LABs, with 10 logic elements (LEs) in each LAB. An LE is a small unit of logic providing efficient implementation of user logic functions. LABs are grouped into rows and columns across the device.
Features
EPM1270T144C5 features: (1)Low-cost, low-power CPLD ; (2)Instant-on, non-volatile architecture; (3)Standby current as low as 2 mA; (4)Provides fast propagation delay and clock-to-output times; (5)UFM block up to 8 Kbits for non-volatile storage; (6)Bus-friendly architecture including programmable slew rate, drive ; (7)strength, bus-hold, and programmable pull-up resistors.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPM1270T144C5 |
|
IC MAX II CPLD 1270 LE 144-TQFP |
Data Sheet |
|
|
||||||
|
EPM1270T144C5N |
|
IC MAX II CPLD 1270 LE 144-TQFP |
Data Sheet |
|
|
||||||
