Product Summary

The ISL32478EIBZ is an extended common mode range transceiver. Its applications include Utility Meters/Automated Meter Reading Systems, High Node Count RS-485 Systems, Security Camera Networks, Building Lighting and Environmental Control Systems, Industrial/Process Control Networks.

Parametrics

ISL32478EIBZ absolute maximum ratings: (1)VCC to ground: 7V; (2)input voltage: -0.3 to VCC+0.3V; (3)Input/output voltage: ±60V; (4)short circuit duration: indefinite; (5)latch-up: 125℃; (6)maximum junction temperature: 150℃; (7)maximum storage temperature range: -65 to 150℃.

Features

ISL32478EIBZ features: (1)fault-protected RS-485 bus pins: up to ±60V; (2)extended common mode range: ±15V; (3)high transient over-voltage tolerance: ±80V; (4)hot plug circuitry; (5)low quiescent supply current: 2.3mA; (6)ultra low shutdown supply current: 10μA.

Diagrams

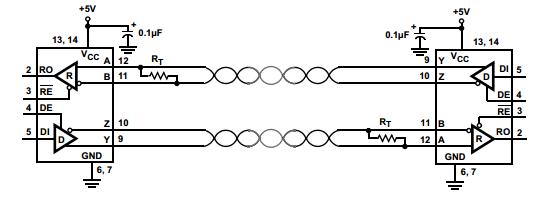

ISL32478EIBZ diagram
