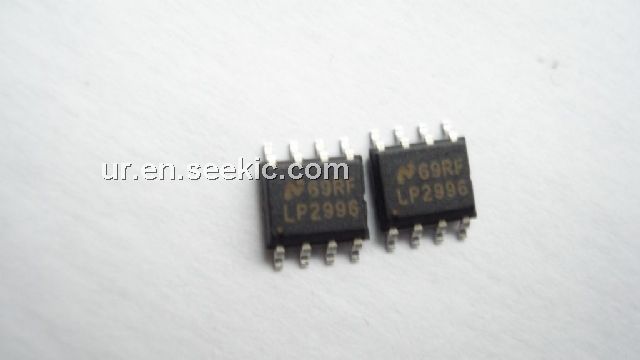

LP2996

DDR termination regulator, 151W, -0.3 to 6V, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.60~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 3000 :	1.60 / Piece

PartNumber:: LP2996

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 3000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. qi's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-24

From Other Seller

Part Number:LP2996
US $1.60 - 1.60
Quantity:

piece

Product Summary

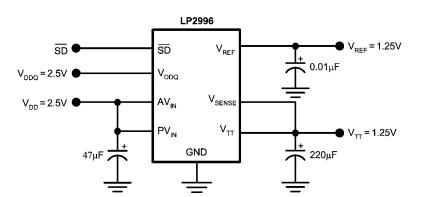

The LP2996 is a DDR termination regulator. The applications of the LP2996 include DDR-I and DDR-II Termination Voltage, SSTL-2 and SSTL-3 Termination, HSTL Termination. It is designed to meet the JEDEC SSTL-2 specifications for termination of DDR-SDRAM. The device contains a high-speed operational amplifier to provide excellent response to load transients. The output stage prevents shoot through while delivering 1.5A continuous current and transient peaks up to 3A in the application as required for DDR-SDRAM termination.

Parametrics

LP2996 absolute maximum ratings: (1)AVIN to GND: -0.3 to 6V; (2)PVIN to GND: -0.3 to AVIN; (3)VDDQ: -0.3 to 6V; (4)junction temperature: 150℃; (5)storage temperature range: -65 to 150℃; (6)lead temperature: 260℃.

Features

LP2996 features: (1)Source and sink current; (2)Low output voltage offset; (3)No external resistors required; (4)Linear topology; (5)Suspend to Ram (STR) functionality; (6)Low external component count; (7)Thermal Shutdown; (8)Available in SO-8, PSOP-8 or LLP-16 packages.
