Product Summary

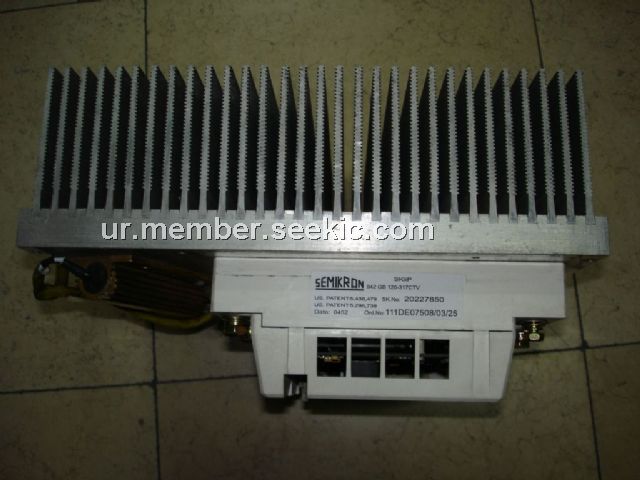

The SKIIP942GB120-317CTV is a 2-pack - integrated intelligent Power System. It is applicated for Power section and 2-pack integrated gate driver.
Parametrics
SKIIP942GB120-317CTV absolute maximum ratings: (1)operating DC link voltage VCES: 1200 V; (2)operating DC link voltage VCC: 900 V; (3)operating DC link voltage VGES: ± 20 V; (4)IC (Ts = 25℃ ) : 900 A; (5)IFSM: 6480 A; (6)Visol: 3000 V.
Features
SKIIP942GB120-317CTV features: (1)skiip technology inside; (2)low loss 1GBTs; (3)CAL diode technology; (4)integrated current sensor; (5)integrated temperature sensor; (6)integrated heat sink.
