Product Summary

The STB13NK60ZT4 is a N-CHANNEL 600V-0.48Ω-13A TO-220/FP/D2PAK/I2PAK/TO-247 Zener-Protected SuperMESh Power MOSFET. The series is obtained through an extreme optimization well established stripbased PowerMESH layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.

Parametrics

STB13NK60ZT4 absolute maximum ratings: (1)Drain-source Voltage (VGS = 0): 600 V; (2)Drain-gate Voltage (RGS = 20 kΩ) : 600 V; (3)Peak Diode Recovery voltage slope: 4.5 V/ns; (4)Insulation Withstand Voltage (DC): 2500 V; (5)Operating Junction Temperature: -55 to 150 °C; (6)Storage Temperature: -55 to 150°C.

Features

STB13NK60ZT4 features: (1)typical RDS(on) = 0.48Ω; (2)exrtremely high dv/dt capability: (3)100% avalanche tested; (4)gate charge minimized; (5)very low intrinsic capacitances; (6)very good manufacturing repeatibility.

Diagrams

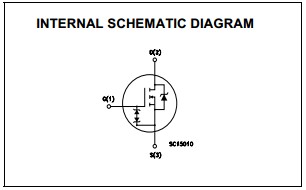

STB13NK60ZT4 internal schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STB13NK60ZT4
STB13NK60ZT4
STMicroelectronics
MOSFET N-Ch 600 Volt 13 Amp Zener SuperMESH
Data Sheet
0-590: $1.50
590-1000: $1.18
1000-2000: $1.16
2000-5000: $1.12
