Product Summary

The SY87700LZI is a clock and data recovery. It is suited for SONET applications and other high-speed data transmission systems. It is performed by synchronizing the on-chip VCO directly to the incoming data stream. The applications of the SY87700LZI include proprietary architecture up to 175Mbps, fast ethernet, SMPTE 259, SONET/SDH/ATM OC-1 and OC-3.

Parametrics

SY87700LZI absolute maximum ratings: (1)supply voltage: -0.5 to 4V; (2)Input voltage: -0.5 to VCC; (3)Output current: 50mA; (4)Lead temperature: 260℃; (5)storage temperature: -65 to 150℃; (6)output current-surge: 100mA.

Features

SY87700LZI features: (1)Industrial temperature range: -40 to 85℃; (2)3.3V power supply; (3)clock and data recovery from 32Kbps up to 175Mbps NRZ data stream, clock generation from 32Mbps to 175Mbps; (4)selectable reference frequencies.

Diagrams

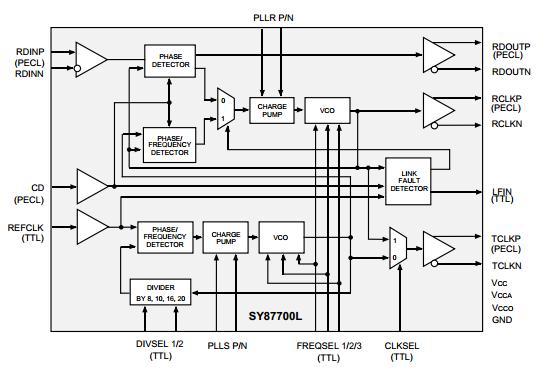

SY87700LZI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

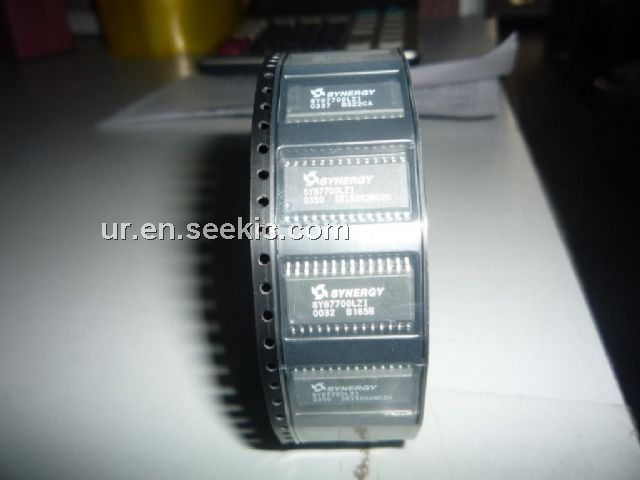

SY87700LZI
SY87700LZI

IC CLOCK/DATA RECOVERY 28-SOIC
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SY87700ALHG TR
SY87700ALHG TR

IC CLOCK/DATA RECOVERY 32-TQFP
Data Sheet
0-1000: $12.30
SY87700ALZG
SY87700ALZG

IC CLOCK/DATA RECOVERY 28-SOIC
Data Sheet
0-1: $18.92
1-25: $16.09
25-100: $14.90
100-250: $13.72
250-500: $13.01
SY87700LHG
SY87700LHG

IC CLOCK/DATA RECOVERY 32-ETQFP
Data Sheet
0-1: $19.38
1-25: $16.47
25-100: $15.26
100-250: $14.05
250-500: $13.32
SY87700LHG TR
SY87700LHG TR

IC CLOCK/DATA RECOVERY 32-TQFP
Data Sheet
0-1000: $12.60
SY87700LZG
SY87700LZG

IC CLOCK/DATA RECOVERY 28-SOIC
Data Sheet
0-1: $19.38
1-25: $16.47
25-100: $15.26
100-250: $14.05
250-500: $13.32
SY87700LZI
SY87700LZI

IC CLOCK/DATA RECOVERY 28-SOIC
Data Sheet
Negotiable
