Product Summary

The TIP36C is a complementary silicon high power transistor. It is a silicon epitaxial-base NPN transistor mounted in TO-218 plastic package. The TIP36C is intended for use in power amplifier and switching applications.

Parametrics

TIP36C absolute maximum ratings: (1)collector-base voltage: 100V; (2)Collector-emitter voltage: 100V; (3)Emitter-base voltage: 5V; (4)Collector current: 25A; (5)Base current: 5A; (6)Storage temperature: -65 to 150℃; (7)operating junction temperature: 150℃.

Features

TIP36C features: (1)Collector cut-off current: 1mA; (2)Emitter cut-off current: 1mA; (3)collector-emitter sustaining voltage: 80V; (4)Collector cut-off current, VBE=0: 0.7mA.

Diagrams

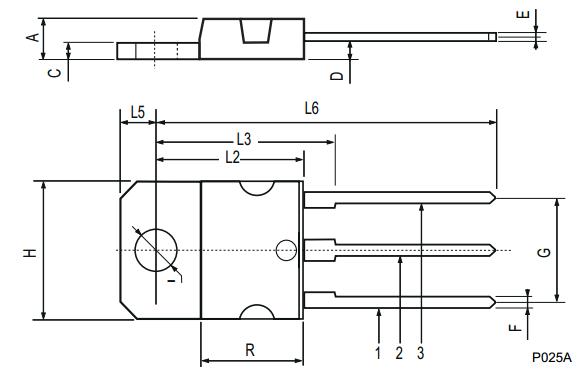

TIP36C block diagram

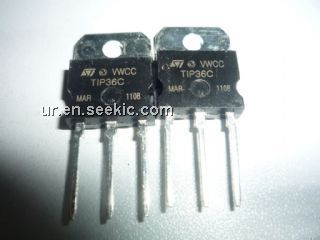

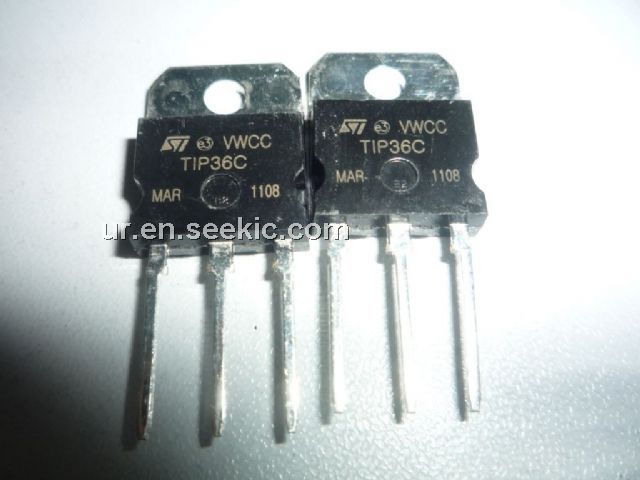

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TIP36C
TIP36C
STMicroelectronics
Transistors Bipolar (BJT) PNP Gen Pur Power
Data Sheet
0-1: $0.95
1-10: $0.89
10-100: $0.78
100-250: $0.70
