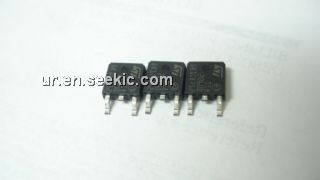

Product Summary

Available either in sensitive (TS8) or standard (TN8 / TYN) gate triggering levels, the TS820600 is suitable to fit all modes of control, found in applications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capacitive discharge ignition and voltage regulation circuits. TS820600 is available in through-hole or surface-mount packages,TS820600 provide an optimized performance in a limited space area.

Parametrics

TS820600 absolute maximum ratings: (1)RMS on-state current (180° conduction angle):8A; (2)Average on-state current (180° conduction angle):5A; (3)Peak gate current:4A; (4)Average gate power dissipation:1W; (5)Storage junction temperature range:- 40 to + 150°C; (6)Operating junction temperature range:- 40 to + 125°C; (7)Maximum peak reverse gate voltage (for TN8 & TYN only):5V.

Features

TS820600 features : (1)IT(RMS):8A; (2)VDRM/VRRM:600 to 1000 V; (3)IGT:0.2 to 15 mA.

Diagrams

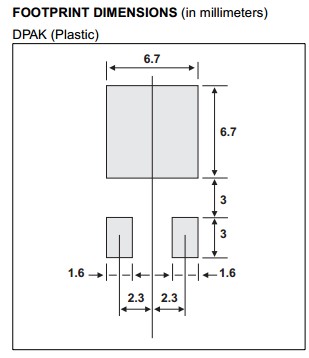

TS820600 footprint dimension
