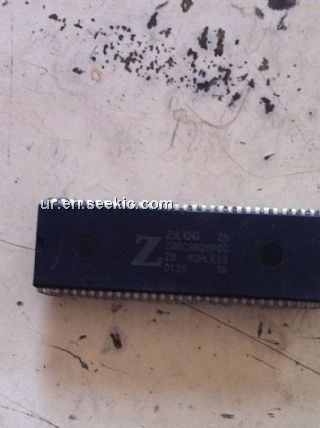

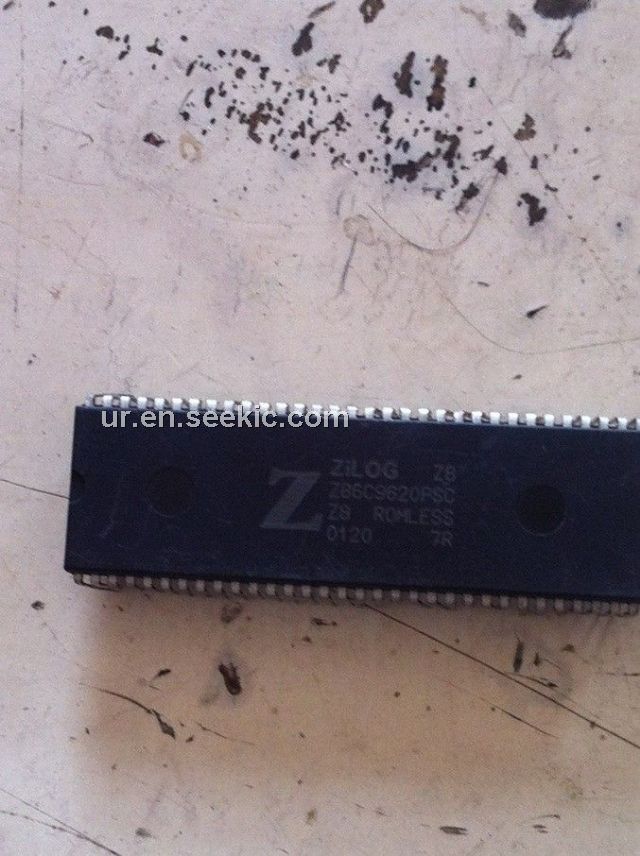

Z86C9620VSC

Z86C9620VSC, CMOS, Z8, MICROCONTROLLER, –0.3V, 7.0 V,

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.50~4.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	4.50 / Piece

PartNumber:: Z86C9620VSC

Brand:: Zilog, Inc. - Zilog | Pack: DIP | D/C: 01+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. qi's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-19

From Other Seller

Part Number:Z86C9620VSC
US $4.50 - 4.50
Quantity:

piece

Product Summary

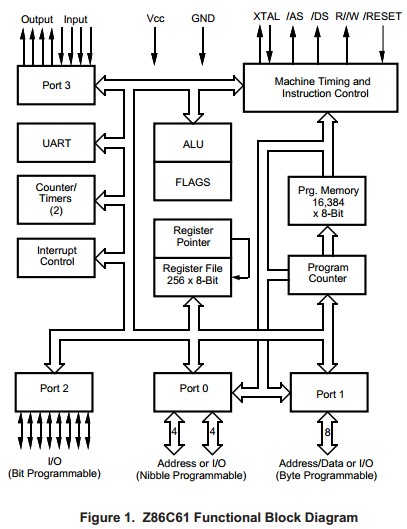

The Z86C9620VSC microcontroller is a member of the Z8 single-chip microcontroller family with 16 Kbytes of ROM and 256 bytes of RAM. The Z86C96 is ROMless. The Z86C61 is offered in 40-pin DIP and 44-pin PLCC style packages, however, the ROMless pin option is available on the 44-pin version only. The Z86C9620VSC is offered in 64- pin DIP and 68-pin PLCC style packages. A ROMless pin option enables these MCUs to address both external memory and preprogrammed ROM, making them wellsuited for high-volume applications or where code flexibility is required.

Parametrics

Z86C9620VSC absolute maximum ratings: (1)Supply Voltage:–0.3 to +7.0 V; (2)Storage Temp:–65 to +150 °C.

Features

Z86C9620VSC features: (1)8-Bit CMOS Microcontroller; (2)40-Pin DIP, 44-Pin PLCC, 64-Pin DIP, or 68-Pin PLCC Package; (3)32 Input/Output Lines (Z86C61 Only); (4)52 Input/Output Lines (Z86C62 and Z86C96); (5)3.0V to 5.5V Operating Range; (6)Low Power Consumption: 200 mW (max); (7)Fast Instruction Pointer: 0.75 μs @ 16 MHz; (8)Two Standby Modes: STOP and HALT; (9)Full-Duplex UART; (10)All Digital Inputs are TTL Levels; (11)Auto Latches; (12)RAM and ROM Protect; (13)Clock Speeds: 16 and 20 MHz; (14)Six Vectored, Priority Interrupts from Eight; (15)Different Sources; (16)On-Chip Oscillator that Accepts a Crystal, Ceramic Resonator, LC, or External Clock Drive.
