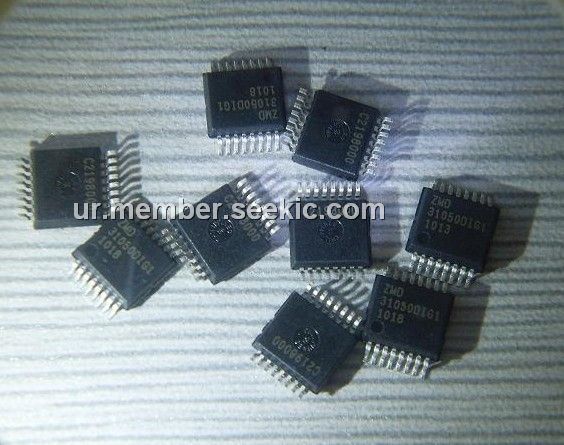

Product Summary
The ZMD31050DIG1 is a CMOS integrated circuit for highly-accurate amplification and sensor-specific correction of bridge sensor signals. The ZMD31050DIG1 provides digital compensation of sensor offset, sensitivity, temperature drift and non-linearity by a 16-bit RISC micro controller running a correction algorithm with correction coefficients stored in non-volatile EEPROM. The ZMD31050DIG1 accommodates virtually any bridge sensor (e.g. piezo-resistive, ceramic-thickfilm or steel membrane based).
Parametrics
ZMD31050DIG1 absolute maximum ratings: (1)Digital Supply Voltage:-0.3 to 6.5V ; (2)Analog Supply Voltage:-0.3 to 6.5V ; (3)Voltage at all analog and digital I/O - Pins :-0.3 to VDDA +0.3V ; (4)Voltage at Pin FBP:-1.2 to VDDA +0.3V ; (5)Storage temperature:-45℃ to 150℃.
Features
ZMD31050DIG1 features: (1)Digital compensation of sensor offset, sensitivity, temperature drift and non-linearity; (2)Accommodates nearly all bridge sensors types (signal spans from 1 up to 275mV/V processable); (3)Digital one-shot calibration: quick and precise ; (4)Selectable temperature compensation reference: bridge, thermistor, internal diode or external diode; (5)Output options: voltage (0 to 5V), current (4 to 20mA), PWM, I2C, SPI, ZACwireTM(one-wire-interface), alarm; (6)Adjustable output resolution (up to 15 bits) versus sampling rate (up to 3.9kHz); (7)Selectable bridge excitation: ratiometric voltage, constant voltage or constant current; (8)Input channel for separate temperature sensor; (9)Sensor connection and common mode check(Sensor aging detection) ; (10)operation temperature, depending on product version, up to -40 to +125℃ (-55 to +150℃ derated); (11)Supply voltage +2.7V to +5.5V; (12)Available in SSOP16 or as die.

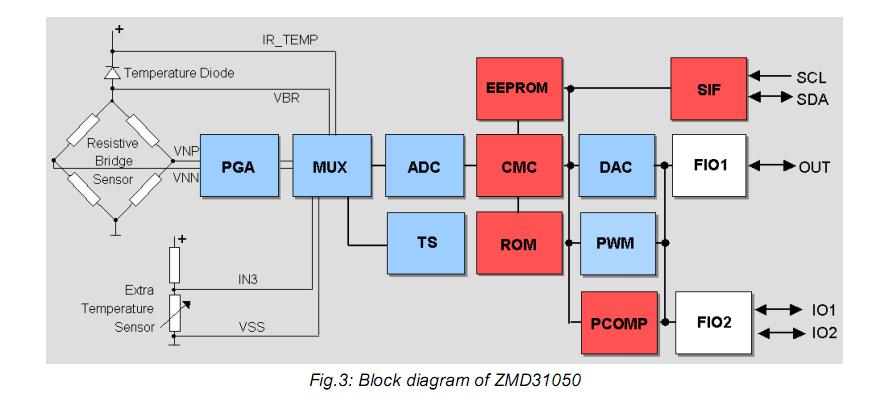

Diagrams
 |
