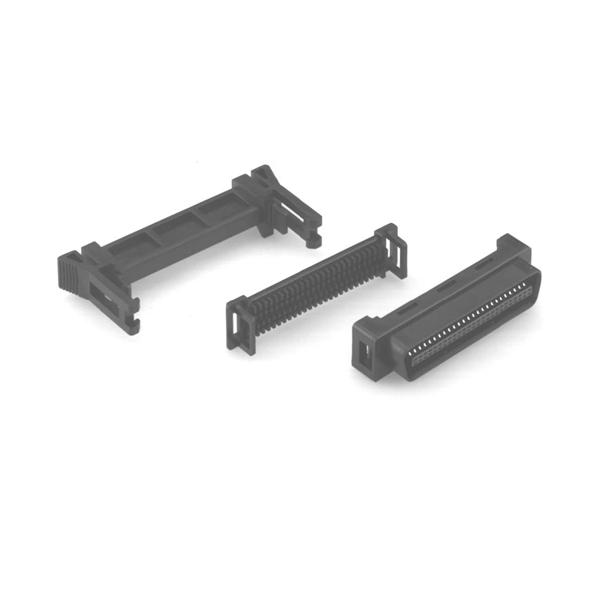

Product Summary
10150-3000PE is a 3M Mini D ribbon (MDR) connector.
Parametrics
10150-3000PE absolute maximum ratings: (1)Current Rating: 1 A; (2)Insulation Resistance: >1 x 108Ω at 500 VDC; (3)Withstanding Voltage: 500 VRMS for 1 minute; (4)Temperature Rating: -55°C to +105°C; (5)Solder Process: 360°C max for 10 sec. max.
Features
10150-3000PE features: (1)Insulation Material: Glass Reinforced Polyester; (2)Flammability: UL 94V-0; (3)Color: Black; (4)Contact Material: Copper Alloy; (5)Plating:; (6)Underplating: 80 μ" [ 2.0 μm ] Nickel; (7)Wiping Area: Gold (see ordering information); (8)Solder Tail Plating: Gold Flash over Nickel (RIA E1 & C1 apply); (9)Shroud Material: Steel; (10)Plating: Nickel; (11)Wire Accomodation: 24, 26, 28 & 30 AWG; (12)Marking: 3M Logo and Part Number; (13)Wiper-on-wiper contact for reliable repetitive plugging; (14)Solder cup termination requires no special tooling; (15)Accepts a wide variety of discrete wire (24 to 30AWG) cable construction; (16)Contacts: 14, 20, 26, 36, 40 and 50; (17)See Regulatory Information Appendix (RIA) for; (18)chemical compliance information.

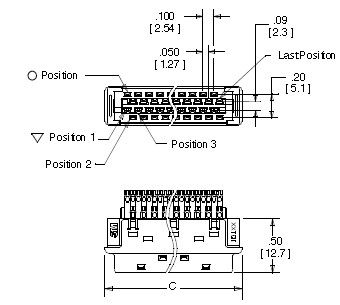

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

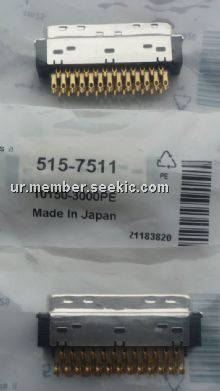

 10150-3000PE |
3M Electronic Solutions Division |
D-Sub Micro-D Connectors 50P PLUG WIREMOUNT MDR |
